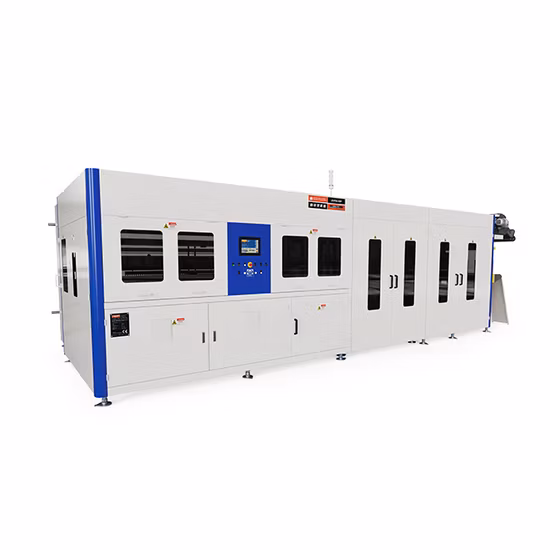

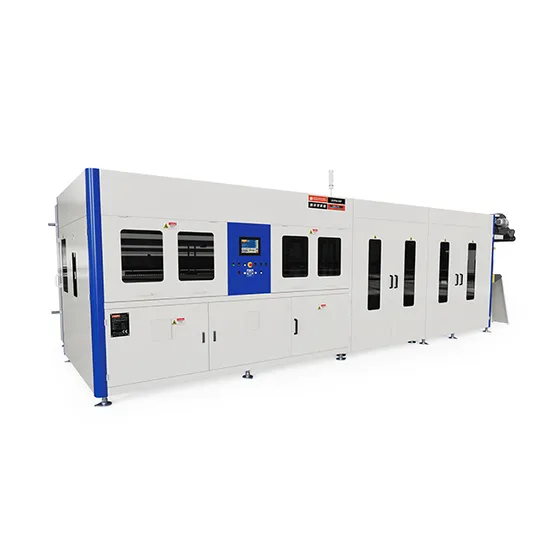

Automatic Mattress Pocket Spring Assembling Machine (LR

Basic Info.

Model NO.	LR-PSA-99P
Patented Product	14 Strings/Min.
Transport Package	Wooden Box
Specification	CE
Trademark	XIDENGBAO
Origin	China(Mainland)
HS Code	8479819000
Production Capacity	10 Sets/Month

Product Description

LR-PSA-99P Pocket Spring Assembly Machine
Technical Specification

Production capacity		700 springs /min.

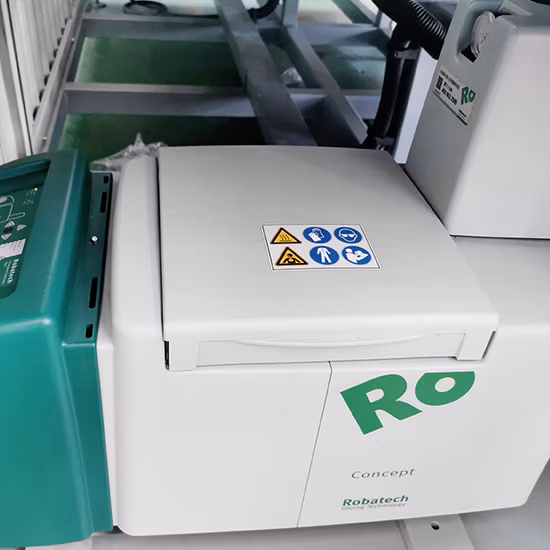

Hot melt application system		Nordson (the USA) or Robatech ( Switzerland)
Capacity of glue tank		30kg
Gluing method		Spot spray, continuous spray and general economic mode
Possibility of assembling zoned tape		Possible
Possibility of assembling zoning mattress		Possible
Air consumption		0.15 m³/min.
Air pressure		0.6-0.7 mpa
Power consumption in total		15KW
Voltage		3AC 380V
Frequency		50/60 Hz
Input current		25A
Cable section		3*10mm2+2*6mm2
Working temperature		+5ºC-+35ºC
Weight		4800Kg
Non-woven fabric
Fabric width		450-2200mm
Inner dia. of fabric roll		Min.60mm
Outer dia. of fabric roll		Max.600mm
Fabric density		65~80g/m2
Hot melt glue
Shape		pellet or pieces
Viscosity		125C---6100cps
		150C---2300cps
		175C---1100cps
Softening point		85±5"C
Working range(mm)
Spring Waist Diameter		Φ37-75mm
Pocket Spring Height		55-250
