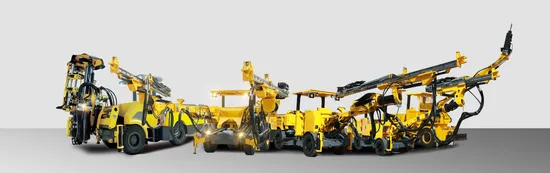

Underground Mlutifuntiona Face Drilling Jumbo and Rock Bolter with Telescopic Boom

Basic Info.

Model NO.	GP82A
Motor	AC Motor
Hole Diameter	43-102mm
Hope Depth	1500/2760mm
Drifter	Epiroc or Montabert
Engine	Yanmar
Hydraulic Pump Group	Sauer U.S.a.
Voltage	440V 380V 550V etc
Transport Package	Standard Export Packing
Specification	40′ HQ container
Trademark	GRANDPLAN
Origin	China
Production Capacity	700 Pieces/Year

Product Description

Underground Mlutifuntiona face drilling JUMBO and Rock Bolter with telescopic boom
GP82A Hydraulic drilling jumbo is used for underground tunneling construction in metal mine and other underground engineering, which is suitable for small and medium sized cross section tunnels. The jumbo is designed with compact structure, small outside dimension, energy saving, advanced hydraulic rock drilling system for making it has rapid drilling speed, high efficiency, lower noise and gets efficiency development with better safety to operators.SpecificationGeneral
Drifter
Feeder
Boom
Hydraulic system
Control system
Air system
Water system
Electrical system
Chassis
Feed measurement (with rock drill 14U)Rod length 1830mm, Hole depth 1500mmRod length 3090mm, Hole depth 2760mm

Overall size (traveling) L×W×H	mm	10670×1650×2085(2795)
Weight	T	Approx. 11.5
Coverage area	mm	3000*3000-5050*4500(**Min. tunnel height for bolting is 3500mm)

Model	Epiroc 14U
Impact power	14Kw
Impact frequency	50Hz
Impact pressure	≤20Mpa
Impact flow	≤80 L/min
Rotation torque	1050N.m
Rotation speed	0-200 r/min
Rotation pressure	≤14Mpa
Rotation flow	≤75 L/min

			14U
Total length	Feeder retracted	mm	3450
	Feeder extended	mm	4710
Length of steel rod		mm	1830/3090
Hole depth	Feeder retracted	mm	1500
	Feeder extended	mm	2760

Feeder compensation	mm	1250
Feeder rotation	°	±180
Feeder rolling	°	±180
Boom lifting	°	+53/-30
Boom swinging	°	±35

Hydraulic pump group	Set	SAUER U.S.A.
Max. system pressure	Bar	230
Hydraulic oil tank capacity	L	180+90
Low oil level alarm		yes
Water cooled hyd. oil cooler		yes
Hydraulic oil filter blocked indicator		yes

Direct hydraulic control system

Auto anti-jamming mechanism

Air compressor power	KW	4
Max. Displacement	m3/min	1.0
Revolutions per minute	r/min	2900

CDL4-16 Water pump
Max. Flow	L/min	67/min
Min. Inlet pressure	Bar	2
Motor power	Kw	4

Total power	KW	63
Main motor power	KW	55
Voltage	V	440 or other
Frequency	Hz	60 or other
Electric motor overload protector		yes
Digital voltage/ampere meter		yes
Phase sequence indicator		yes
Charger		yes
Cable reel	m	70

Engine		4TNV98T, Yanmar
Rated Power(2400rpm)	KW	53.1
Rated torque(1650rpm)	Nm	290
Articulated turning angle	°	±35
Fixed seat
Hydraulic power steering system
Dual pump four-motor hydrostatic four wheel drive		SAUER, U.S.A.
Fixed front wheel
Oscillating rear wheel	°	±7
Tyre	Model	8.25-15
Approach/departure angle	°	14
Front hydraulic jack	pc	2 Extendable
Rear hydraulic jack	pc	2
Service brakes		Hydraulic
Emergency and parking brakes		Multi-spring pressured, hydraulic released
Fuel tank capacity	L	55
Electric system	V	12
Storage Batteries		12V,1x200Ah
Tramming lamp	W	4×27,4×24
Central lubrication
Horn, signal lamp, reverse warning lamp
Max. gradeability at max load		1∶4
Tramming speed	Km/h	0-8
